XL40, LED KTM 690 (12-18) kit
Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit - purpose-built for the KTM 690 Enduro R. Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. Engineered for dirt bikes with lower-output OEM stators, it draws just 43.5W - a powerful upgrade without the large power draw. The built-in low beam functionality lets riders reduce output in low-beam mode by about 25% of high beam, producing 1,435 lumens when full brightness isn't needed.
  • Inspired by the performance of the XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes
  • Engineered for dirt bikes with lower-output OEM stators, it draws just 43
  • 5W - a powerful upgrade without the large power draw

Information:

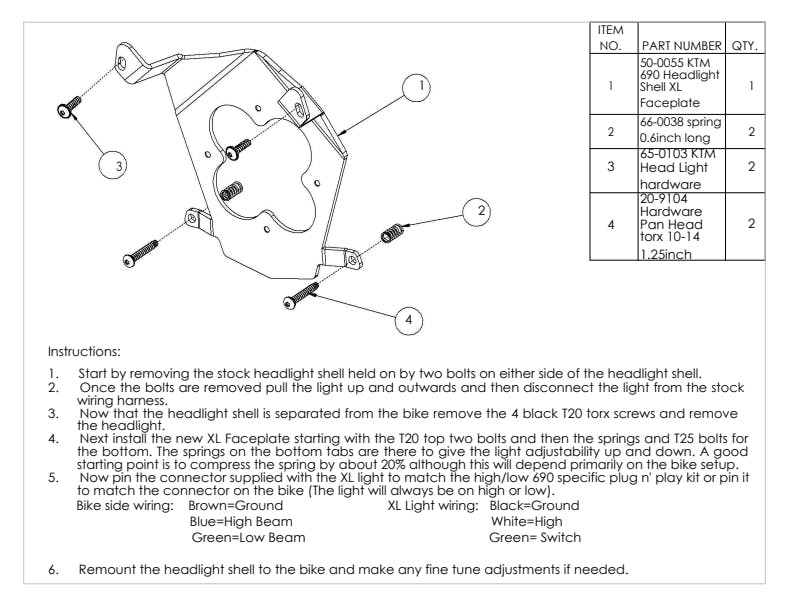

Headlight Kit

Application Summary:

Year Make/Model
KTM 690 Enduro R ('12-18)
Attributes
Amperage Rating (A) 3.4
Average Rated Life (hr.) 49930
Beam Pattern Trail
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 5,224 (Hi) / 1,435 (Low)
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Country of Origin (Primary) US
Depth (in.) 3.65
DES XL40 (D/C) LED Headlight Kit
Description Trail; Clear
Effective Lighting Score (ELS) High: 92°/5.9/226’/5224; Low; 74°/5.9/119’/1435
EXT XL40, LED KTM 690 (12-18) kit
Hazardous Material Code N
Height (in.) 4.43
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Length (in.) 4.43
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Life Cycle Status Code Available to Order
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
NAFTA Preference Criterion Code B
Overvoltage Protection Built-In
Product Type XL40
SDR Required Flag N
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
TLE XL40, LED KTM 690 (12-18) kit
Universal or Specific Universal
Wattage (W) 43.5
Weight (lbs.) 2.45
Wiring Harness Included Yes
GTIN 00810160464679
