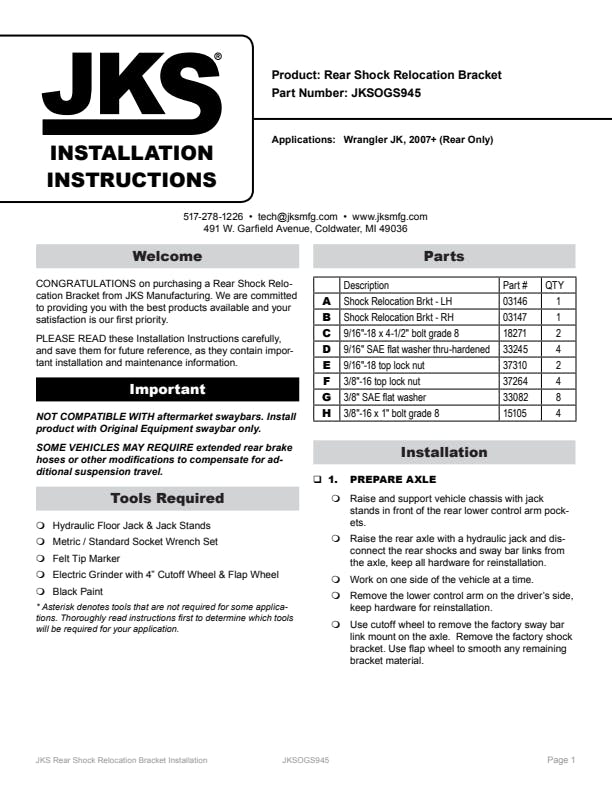

Relocate the shock mounts on the Jeep Wrangler JK for better clearance and enhanced reliability with a JKS rear shock relocation kit. The new mounting brackets are made of 1/4 steel and include a dual-shear shock mount and new sway bar link mount. An integrated control arm mount skid plate adds protection. Installation is bolt-on and requires the removal of the factory axle shock mounts, sway bar link mounts and trimming of the control arm mount. A 2 improvement in ground clearance is an added benefit. The shock mounts are moved up 2-1/4 from the factory position and the sway bar mount moves up 1-3/4. Designed for bolt-on Installation. Features a black, powder-coated finish. Shock Mount Width: 1.60; Shock Bolt Diameter 12mm; Brackets Made From 3/16 Steel; Minor Drilling Required.
- Relocates the shocks higher on the axle
- Integrated rear control arm skid plate
- Brackets are powder coated in classic JKS black
- This kit relocates the rear shocks higher on the axle which allows trimming of the low-hanging factory mounts to maximize ground clearance
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Harmonized Tariff Code (Schedule B) |
8708807000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Wholesale Only |
No |
| GTIN |
00814897011397 |
