High-efficiency intercooler engineered to reduce intake air temperatures for improved power and engine performance. Durable construction ensures optimal heat exchange, consistent boost, and a precise, reliable fit.

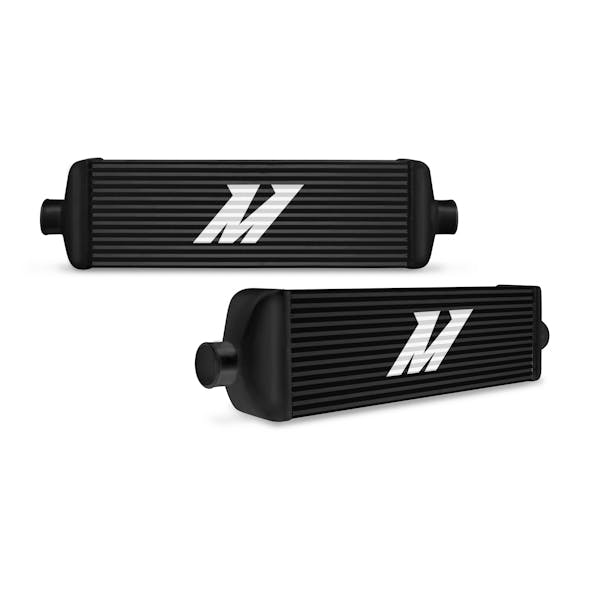

A smaller cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size.Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space.In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar.Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.
  • Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
  • Robust, one-piece cast aluminum end tanks withstand high boost pressures
  • Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles

Application Summary:

Universal
Attributes
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Color Black
Core Color Black
Core Height 7.2
Core Length 22
Core Material Aluminum
Core Thickness 3.5
Country of Origin (Primary) CN
Grade Type Performance
Harmonized Tariff Code (Schedule B) 8708998180
Hazardous Material Code N
Height 7.5
Inlet Fitting Gender Male
Inlet Outside Diameter 2.5
Inlet Tank Material Aluminum
Install Difficulty N/A
Length 29.5
Life Cycle Status Code Available to Order
Material Aluminum
NAFTA Preference Criterion Code B
OptionLabel Black
Outlet Fitting Gender Male
Outlet Outside Diameter 2.5
SDR Required Flag N
SellingPoint01 Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint02 Robust, one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint03 Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
SellingPoint04 Constructed with 6061 aluminum
SellingPoint05 Available in Sleek Silver, Stealth Black, or Bold Gold
SellingPoint06 Mishimoto Lifetime Warranty
SellingPoint07 N/A
SellingPoint08 N/A
SellingPoint09 N/A
SellingPoint1 Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
SellingPoint10 N/A
SellingPoint11 N/A
SellingPoint12 N/A
SellingPoint13 N/A
SellingPoint14 N/A
SellingPoint15 N/A
SellingPoint2 Robust, one-piece cast aluminum end tanks withstand high boost pressures
SellingPoint3 Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
SellingPoint4 constructed with 6061 aluminum
SellingPoint5 Available in Sleek Silver, Stealth Black, or Bold Gold
SellingPoint6 Mishimoto Lifetime Warranty
SellingPoint7 N/A
SellingPoint8 N/A
SellingPoint9 N/A
TechSpec Applications N/A
TechSpec Centerline Radius N/A
TechSpec Chassis Codes N/A
TechSpec Core Height (in) 7.2
TechSpec Core Length (in) 22
TechSpec Core Thickness (in) 3.5
TechSpec Core Type Bar-and-Plate
TechSpec Engine Codes N/A
TechSpec Includes (1) Mishimoto Intercooler--(2) M12X1.25-14 Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in) 2.5
TechSpec Installation Notes N/A
TechSpec Maximum Recommended Boost Pressure (PSI) 40
TechSpec Maximum Recommended Horsepower 500
TechSpec Note N/A
TechSpec Outlet (in) 2.5
TechSpec Overall Height (in) 7.5
TechSpec Overall Length (in) 29.5
TechSpec Overall Width (in) 3.75
TechSpec Pipe Diameter N/A
TechSpec Pipe Length N/A
TechSpec Pipe Shape N/A
TechSpec Weight (lbs) 18.7
Type Bar-and-Plate
Universal Or Specific Fit Specific
Width 3.75
GTIN 00748666003170
